Product Overview:
Wellhead Monitoring Skid (WHM) supplies accurate measurement for the continuous gas-liquid two-phase flow. Different from the
other well monitoring systems, WHM uses separator and flowmeter to meter the flow directly, but not calculate.
Our company is
able to provide continuously real-time well monitoring for oil fields, contributing to realize real “digitalized reservoir management”.
Product Features:
|
Series |
Application |
Location |
Metering Uncertainty(%) |
GOR |
Nuclear Sources |
|
WHM |
Wellhead metering (remote well station, unattended well station, etc.) |
Wellhead |
Liquid：±10 |
Per Well Condition |
None |
|
Communication |
Upper-level Computer |
Power |
Connection |
Separator |
Explosive-proof |
|
GPRS Wireless Transmission |
DSP based FCU-1 and base station |
Battery or Solar PV Panel |
Flange |
LGS |
Instinct Safety |

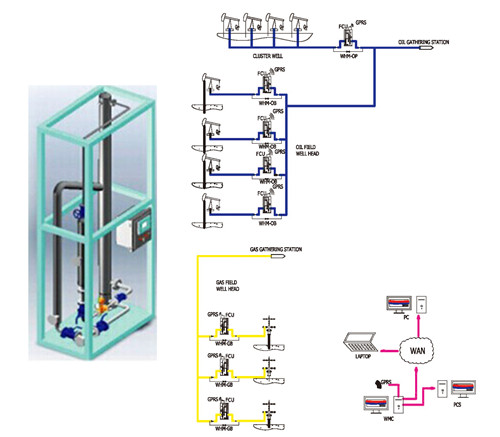

Skid-mounted Design Drawing:
Product Advantages:
Skid design, convenient to move the equipment
Wellhead installation, low cost
24-hours continuous dynamic monitoring, reduction of maintenance costs
Application Example:

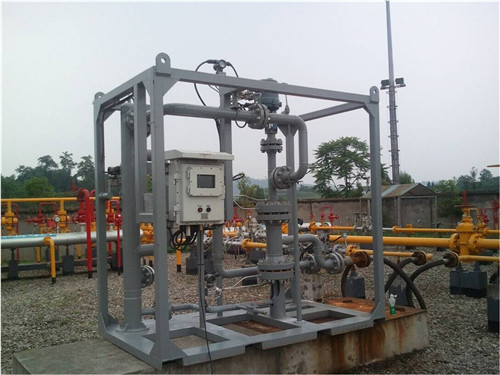

PetroChina Hechuan Project
