Single Well Metering Ski

Product Overview:
The core part of the metering system is GLCC© based separation technology and optimal control system. The gas phase and liquid
phase after the GLCC© separator are metered by single-phase instruments so that the accuracy is assured. LCO（liquid carry
over）from the separator outlet is within 10μm and GCU（gas carry under in the liquid phase is under 1%. GLCC© based
multiphase metering system can be applied to all types of oil and gas wells and be suitable to different oil-gas ratio.

Product Features:

Series	Application	Location	Metering Uncertainty(%)	GOR	Nuclear Sources
MMS-1000	Single well, single platform metering, multi-well alternate metering, etc.	Metering Station, transferring station	Liquid：±3 Gas：±10 Water-cut：±2	0~100%	None
Communication	Upper-level Computer	Power	Connection	Separator	Explosive-proof
RS485/MODBUS	PLC/DSP based FCU-1/FCU-2	Decided by user	Flange	GLCC	EXDⅡBT4

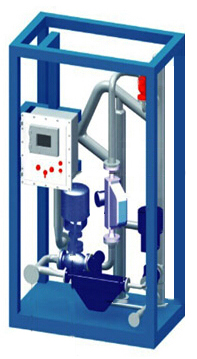

System Standard Layout:



Product Advantages:
Skid design, small footprint, small size
High efficiency of alternate metering
Low measurement uncertainty
Non- radioactive sensors, easy operation, automatic control
Compared with traditional separators, lower pressure drop, less thermal insulation, lower cost
Real-time
Flow loop test in factory reduces operating preparation
Provide different kinds of communication modes to connect with soft hardware of the customer’s system

Application Example:
PetroChina Turkmenistan Separating& Metering Unit(The Largest in the world until now)
