Product Overview

Vane type separator adopts corrugated plate technology to dry the gas with low content liquid less than 15%. It applies to the gas-liquid separation in all kinds of occasions in oil and gas field.

Vane type separator has the following kinds(liquid removal /soluble solid removal)

1）Coaxial separator

2）Vertical separator

3）Compressor’s scrubber for suction section and exhaust section

4）Two phase/ three phase separator

5）Degasser

6）Low temperature separator(LTS)

Vane Series

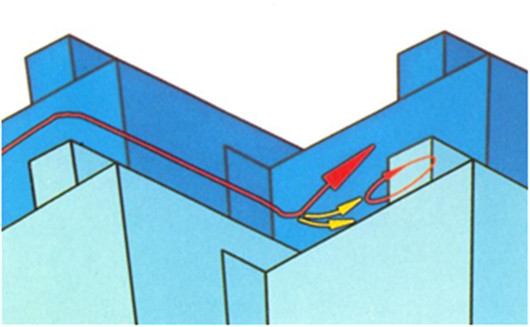

1）Type 624

Features:

- resistance to fouling

- economical

Applications:

- Separating section in the middle of compressor

- purification of the air inlet

- evaporation process

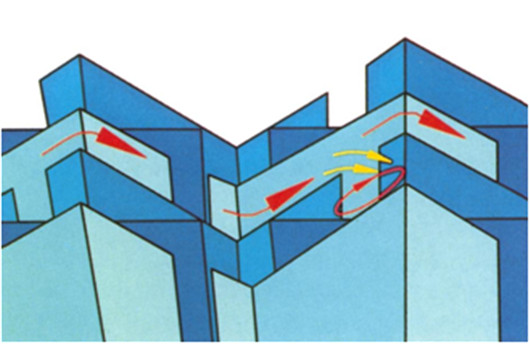

2）Type 624

Features:

-  big processing capacity

-  small pressure drop

Applications:

-  natural gas purification

-  waste gas purification

-  recycling  (such as methyl alcohol, ammonia)

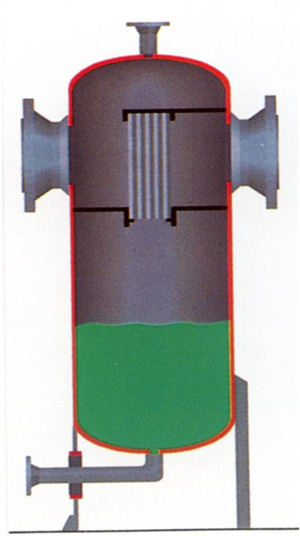

Coaxial separator                                                                                  Vertical separator



Technical Features：

1）High separation efficiency:100% removal of liquid droplets greater than 8μm, 99% removal of liquid droplets 6-8μm.

2）Pressure drop is less than 1.45 PSI.

3）Big handling capacity: Under same working condition and same flow area, the capacity is 4~5 times of mesh mist eliminator.

4）No-blocking, long service life(15~20 years)

Application：

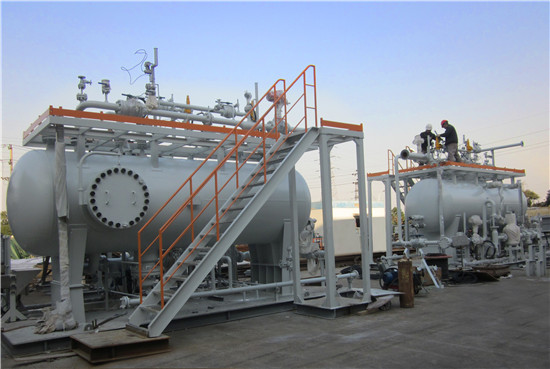

Trial separator in Bei’a
